Nettrix R420 G30 is a cost-effective dual-channel rack server. While meeting the computing demand, the server fulfills ultimate cost optimization.Besides, it is available for flexible configuration of memory and network resources. Applicable to a broad range of business scenarios, e.g., big data, virtualization or database, the server brings high ROI for clients.

Product Highlights

1. High cost performance 2. Higher ROI

Product Features

Balanced and cost-effective performance

● Available for 2nd Gen Intel® Xeon® scalable processors ● Available for 2nd Gen Intel® Xeon® scalable processors ● Available for DDR4 2933MHz memory frequency, with an increased memory band width of 20% compared to the previous generation product

Flexible configuration for more options

● Decoupled hardware modules for more computing, network and memory options to meet various business needs ● Twelve 3.5-inch hard drives in full configuration with compatibility with NVMe SSD to fully enable personalized memory resources Integrated gigabit NIC, flexibly expandable to OCP NIC and PCI-E plug-in NIC to enable personalized network recourses

Intelligent power consumption management

● For large data centers, coupled with open management platform to fully cover multiple management protocols such as RedFish, IPMI and SNMP ● Optimized O&M efficiency with features of health monitoring and report of key units to enable intelligent operation and maintenance service in product life cycle ● Coupled with new high-efficiency energy-saving intelligent speed control design to enable the whole server to dissipate heat according to the ambient temperature and load, improve the power consumption without affecting the load performance, and achieve the business appeal of energy conservation

Technical Specifications


2U rack server


Available for two 2nd Gen Intel® Xeon® scalable processors


Intel C620 Series Chipset


Sixteen DDR4 memory slots, 2933 MHz; available for memory ECC, memory mirror- ing, memory sparing and other protected modes; compatible with four DCPMM memories, 2666 MHz

Storage controller

Available for directed mode, RAID0, RAID1, RAID10, RAID5, RAID50, RAID6, RAID60 and other storage modes When the RAID controller is used, super capacitor of Cache protection and features as RAID level migration, disk roaming, self-diagnosis and Web remote setup are available

Local storage

Front: available for twelve 3.5-inch or 2.5-inch hard drives and compatible with eight NVMe hard drives Rear: available for two 2.5-inch hard drives Built-in: one SATA/PCI-EM.2 and one SD card

Network interface

On-board NIC: 2 GE interfaces and 1 OCP, with NCSI function OCP can be configured with many interfaces, such as 2*GE, 2*10GE and 2*25GE


Available for expansion to six PCI-E 3.0 expansion slots, including one special slot for hard drive controller and one OCP slot

Other interfaces

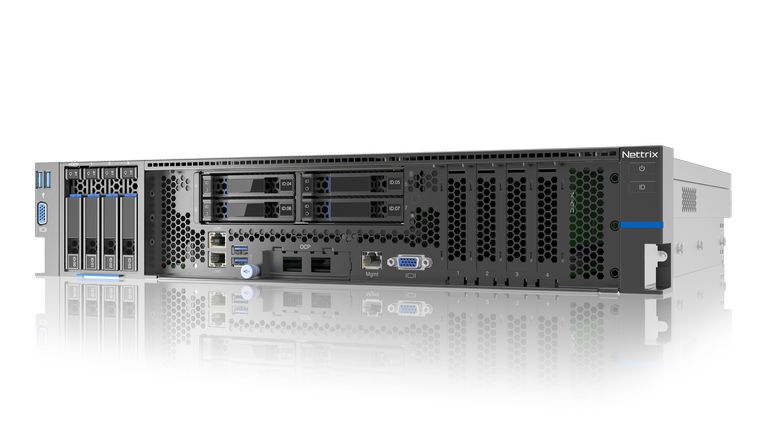

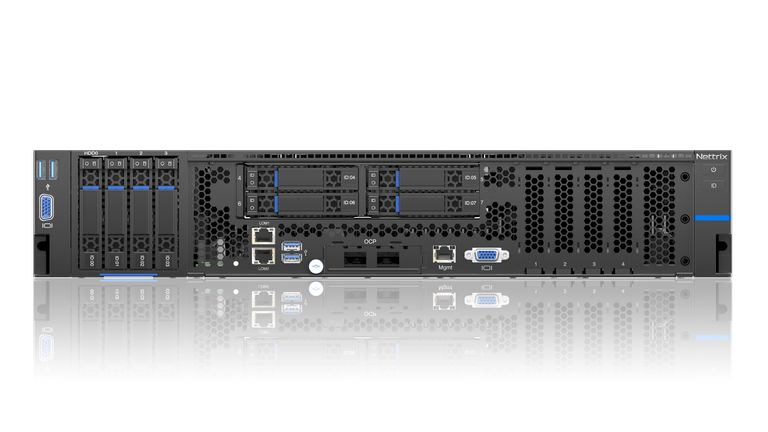

One RJ-45 management interface at the rear of the cabinet Two USB 3.0 interfaces at the rear of the cabinet, two optional USB 3.0/ USB 2.0 interfaces at the front of the cabinet One VGA interface at the rear of the cabinet, front VGA optional One optional serial port at the rear of the cabinet One Micro SD card slot inside the cabinet

Power supply

550W/1200W high-efficiency platinum hot-plug power supply, available for 1+1 power supply redundancy, voltage range: 100-240 V AC (Please refer to the power input value on the nameplate label of the computer host)

Fan module

3 hot-plug fan modules


Integrated BMC chip with external one 1GbpsRJ45 management interface, available for Redfish, SNMP, IPMI 2.0 and other standard interfaces; remote management interface based on IKVM/HTML 5, with functions of comprehensive fault diagnosis, automated O&M, and remote management

Graphic card

Integrated display control unit, resolution: 1920x1080

Operating system

Microsoft® Windows Server, Red Hat Enterprise Linux, SUS ELinux Enterprise Server, CentOS, Ubuntu Vmware EXSI and others. Please call Nettrix hotline 400-898-1688 for more information

Product certification

CCC and others

Cabinet size

87.8mm (height)x448mm (width)x729.8mm (depth) 87.8mm (height)x482 (including lugs) mm(width)x729.8mm (depth)

Weight under full configuration

35kg (excluding guide rail)
