Synopsis

Intended for edge computing data centers with special environment, Nettrix E420 G30 Server may be arranged in any unattended edge computing room with harsh environment for handling client business nearby. It yields effects of high network bandwidth, high-reliability low-delay communication and mass interconnectivity. E420 G30 may also be combined with AI acceleration card to meet business needs for edge side training and reasoning.

Product Highlights

1. Edge deployment 2. Accommodate harsh environment

Product Features

Compactness and flexible configuration

● 2U height, 450mm depth, slightly deeper than 1/2 of a traditional standard server ● Available for eight 2.5-inch hard drives in full configuration and compatible with NVMe SSD for customization of memory resources in all respects ● On-board integrated 1G NIC, flexibly expandable OCP NIC and PCI-E plug-in card for configuration of network resources on demand

New platform with higher computing power

● Available for 2nd Gen Intel® Xeon® scalable processors ● Available for DDR4 2933 MHz memory frequency, with an increased memory bandwidth of 20% ● Compared to the previous generation product and greater competence of mission-critical processing based on built-in FPGA/GPU card

Safe and reliable edge

● Optimized O&M efficiency with features of health monitoring and report of key units to enable intelligent operation and maintenance service in product life cycle ● To cope with harsh environment in the edge computing room, high-reliability techni-calities are added to product design. The device can operate continuously at 45℃. With good performance in corrosion and humidity resistance, fault rate in the harsh environment is lowered

Technical Specifications

Model

2U rack server

Processor

Available for two 2nd Gen Intel® Xeon® scalable processors

Chipset

Intel C620 Series Chipset

Memory

Sixteen DDR4 memory slots, 2933 MHz; available for memory ECC, memory mirror ing, memory sparing and other protected modes Compatible with four DCPMM memories, 2666 MHz in full load

Storage controller

Available for directed mode, RAID0, RAID1, RAID10, RAID5, RAID50, RAID6, RAID60 and other storage modes When the RAID controller is used, super capacitor of Cache protection and fea tures as RAID level migration, disk roaming, self-diagnosis and Web remote setup are available

Local storage

Front: available for eight 2.5-inch hard drives and compatible with four NVMe hard drives Built-in: one SATA/PCI-EM.2 and one SD card

Network interface

On-board NIC: 2 GE interfaces and 1 OCP, with NCSI function OCP can be configured with many interfaces, such as 2*GE, 2*10GE and 2*25GE

PCI-Eexpandability

Available for expansion to five PCI-E 3.0 expansion slots, including one OCP slot Available for one full-height and full-length FPGA/GPU card

Other interfaces

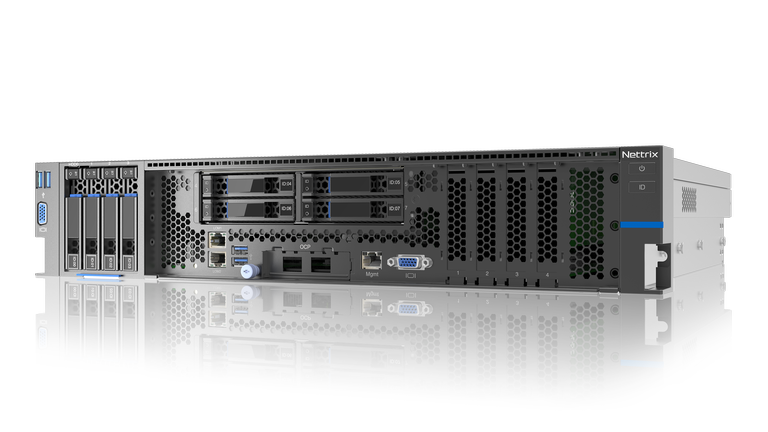

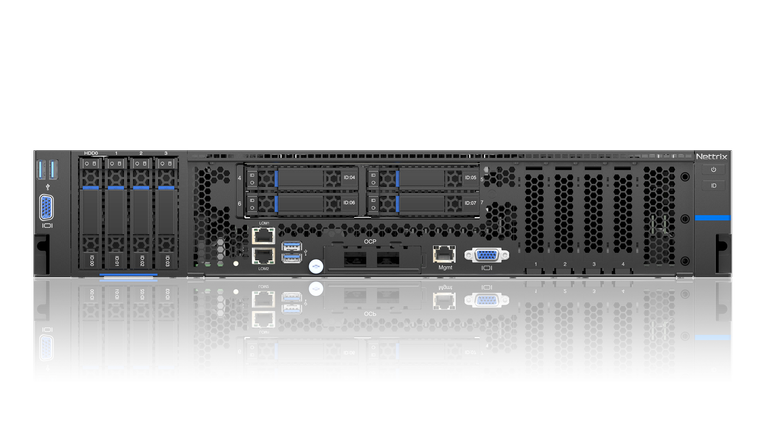

One RJ-45 management interface at the front of the cabinet Two USB 3.0 interfaces at the front of the cabinet One VGA interface at the front of the cabinet One Micro SD card slot inside the cabinet

Power supply

550W/1200W high-efficiency platinum hot-plug power supply, available for 1+1 power supply redundancy, voltage range: 100-240 V AC (Please refer to the power input value on the nameplate label of the computer host)

Fan module

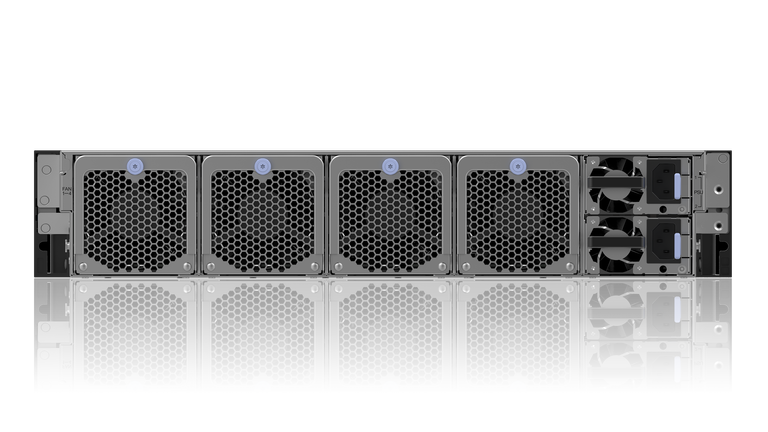

4 hot-plug fan modules, available for N+1 fan redundancy

Management

Integrated BMC chip with external one 1Gbps RJ45 management interface, avail able for Redfish, SNMP, IPMI 2.0 and other standard interfaces; remote manage ment interface based on IKVM/HTML 5, with functions of comprehensive fault diagnosis, automated O&M, and remote management

Graphic card

Integrated display control unit, resolution: 1920x1080

Operating system

Microsoft® Windows Server, Red Hat Enterprise Linux, SUS ELinux Enterprise Server, CentOS, Ubuntu Vmware EXSI and others. Please call Nettrix hotline 400-898-1688 for more information

Working temperature

5℃-45℃ when working (please contact Nettrix for more information)

Product certification

CCC and others

Cabinet size

87.6mm(height) x 446mm(width) x450mm(depth)

Weight under full configuration

20kg (excluding guide rail)
